Microservices architecture, what & why?


Microservice applications are composed of small, independently versioned, and scalable customer-focused services that communicate with each other over standard protocols with well-defined interfaces.

In some ways, microservices are the natural evolution of service oriented architectures (SOA), but there are differences between microservices and SOA. Here are some defining characteristics of a microservice:

• In a microservices architecture, services are small, independent, and loosely coupled.

• Each service is a separate codebase, which can be managed by a small development team.

• Services can be deployed independently. A team can update an existing service without rebuilding and redeploying the entire application.

• Services are responsible for persisting their own data or external state. This differs from the traditional model, where a separate data layer handles data persistence.

• Services communicate with each other by using well-defined APIs. Internal implementation details of each service are hidden from other services.

• Services don't need to share the same technology stack, libraries, or frameworks.

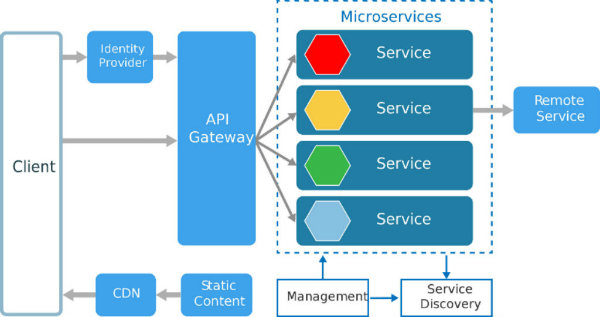

Besides for the services themselves, some other components appear in a typical microservices architecture:

• Management: The management component is responsible for placing services on nodes, identifying failures, rebalancing services across nodes, and so forth.

• Service Discovery: Maintains a list of services and which nodes they are located on. Enables service lookup to find the endpoint for a service.

• API Gateway: The API gateway is the entry point for clients. Clients don't call services directly. Instead, they call the API gateway, which forwards the call to the appropriate services on the back end. The API gateway might aggregate the responses from several services and return the aggregated response.

When to use this architecture?

Consider this architecture style for:

• Large applications that require a high release velocity.

• Complex applications that need to be highly scalable.

• Applications with rich domains or many subdomains.

• An organization that consists of small development teams.

The six characteristics of Microservices:

Multiple Components: Software built as microservices can, by definition, be broken down into multiple component services.  Why?  So that each of these services can be deployed, tweaked, and then redeployed independently without compromising the integrity of an application.  As a result, you might only need to change one or more distinct services instead of having to redeploy entire applications.  But this approach does have its downsides, including expensive remote calls (instead of in-process calls), coarser-grained remote APIs, and increased complexity when redistributing responsibilities between components.

Built For Business: The microservices style is usually organized around business capabilities and priorities.  Unlike a traditional monolithic development approach—where different teams each have a specific focus on, say, UIs, databases, technology layers, or server-side logic—microservice architecture utilizes cross-functional teams.  The responsibilities of each team are to make specific products based on one or more individual services communicating via message bus.  In microservices, a team owns the product for its lifetime, as in Amazon’s oft-quoted maxim “You build it, you run it.

Simple Routing: Microservices act somewhat like the classical UNIX system: they receive requests, process them, and generate a response accordingly.  This is opposite to how many other products such as ESBs (Enterprise Service Buses) work, where high-tech systems for message routing, choreography, and applying business rules are utilized.  You could say that microservices have smart endpoints that process info and apply logic, and dumb pipes through which the info flows.

Decentralized: Since microservices involve a variety of technologies and platforms, old-school methods of centralized governance aren’t optimal.  Decentralized governance is favored by the microservices community because its developers strive to produce useful tools that can then be used by others to solve the same problems.  Just like decentralized governance, microservice architecture also favors decentralized data management.  Monolithic systems use a single logical database across different applications.  In a microservice application, each service usually manages its unique database.

Failure Resistant: Like a well-rounded child, microservices are designed to cope with failure.  Since several unique and diverse services are communicating together, it’s quite possible that a service could fail, for one reason or another (e.g., when the supplier isn’t available).  In these instances, the client should allow its neighboring services to function while it bows out in as graceful a manner as possible. However, monitoring microservices can help prevent the risk of a failure. For obvious reasons, this requirement adds more complexity to microservices as compared to monolithic systems architecture.

Evolutionary: Microservices architecture is an evolutionary design and, again, is ideal for evolutionary systems where you can’t fully anticipate the types of devices that may one day be accessing your application..  Many applications start based on monolithic architecture, but as several unforeseen requirements surfaced, can be slowly revamped to microservices that interact over an older monolithic architecture through APIs.

SOA vs. Microservices:

“Wait a minute,” some of you may be murmuring over your morning coffee, “isn’t this just another name for SOA?” Service-Oriented Architecture (SOA) sprung up during the first few years of this century, and microservice architecture (abbreviated by some as MSA) bears a number of similarities. Traditional SOA, however, is a broader framework and can mean a wide variety of things. Some microservices advocates reject the SOA tag altogether, while others consider microservices to be simply an ideal, refined form of SOA. In any event, we think there are clear enough differences to justify a distinct “microservice” concept (at least as a special form of SOA, as we’ll illustrate later).

The typical SOA model, for example, usually has more dependent ESBs, with microservices using faster messaging mechanisms. SOA also focuses on imperative programming, whereas microservices architecture focuses on a responsive-actor programming style. Moreover, SOA models tend to have an outsized relational database, while microservices frequently use NoSQL or micro-SQL databases (which can be connected to conventional databases). But the real difference has to do with the architecture methods used to arrive at an integrated set of services in the first place.

Since everything changes in the digital world, agile development techniques that can keep up with the demands of software evolution are invaluable. Most of the practices used in microservices architecture come from developers who have created software applications for large enterprise organizations, and who know that today’s end users expect dynamic yet consistent experiences across a wide range of devices. Scalable, adaptable, modular, and quickly accessible cloud-based applications are in high demand. And this has led many developers to change their approach.

Future of the Microservice architecture:

Whether or not microservice architecture becomes the preferred style of developers in future, it’s clearly a potent idea that offers serious benefits for designing and implementing enterprise applications. Many developers and organizations, without ever using the name or even labeling their practice as SOA, have been using an approach toward leveraging APIs that could be classified as microservices.

We’ve also seen a number of existing technologies try to address parts of the segmentation and communication problems that microservices aim to resolve. SOAP does well at describing the operations available on a given endpoint and where to discover it via WSDLs. UDDI is theoretically a good step toward advertising what a service can do and where it can be found. But these technologies have been compromised by a relatively complex implementation, and tend not to be adopted in newer projects. REST-based services face the same issues, and although you can use WSDLs with REST, it is not widely done.

Assuming discovery is a solved problem, sharing schema and meaning across unrelated applications still remains a difficult proposition for anything other than microservices and other SOA systems. Technologies such as RDFS, OWL, and RIF exist and are standardized, but are not commonly used. JSON-LD and Schema.org offer a glimpse of what an entire open web that shares definitions looks like, but these aren’t yet adopted in large private enterprises.

If a large number of standardized definitions can be agreed upon, the next steps are most likely toward agents: small programs that orchestrate microservices from a large number of vendors to achieve certain goals. When you add the increasing complexity and communication requirements of SaaS apps, wearables, and the Internet of Things into the overall picture, it’s clear that microservice architecture probably has a very bright future ahead.
